CommandI Class Reference

The command class encapsulates the interactions between the various interfaces of the SDFormat Editor, providing undo/redo functionality when applicable. More...

#include <command_interface.h>

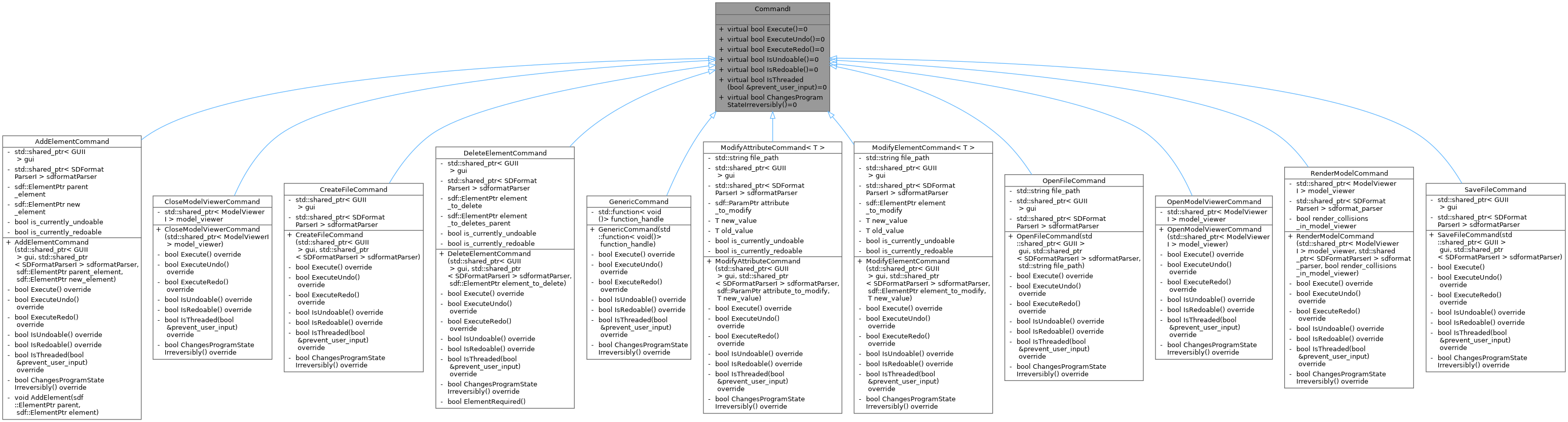

Inheritance diagram for CommandI:

Collaboration diagram for CommandI:

Public Member Functions
virtual bool	Execute ()=0
	Execution of the command. Must be implemented as applicable by the derived class.
virtual bool	ExecuteUndo ()=0
	Execution of the undo command. Must be implemented as applicable by the derived class.
virtual bool	ExecuteRedo ()=0
	Execution of the redo command. Must be implemented as applicable by the derived class.
virtual bool	IsUndoable ()=0
	Undo functionality of the command.
virtual bool	IsRedoable ()=0
	Redo functionality of the command.
virtual bool	IsThreaded (bool &prevent_user_input)=0
	Indicates if this command should be run in a thread.
virtual bool	ChangesProgramStateIrreversibly ()=0
	Indicates if this command is an irreversible state-changing command.

Detailed Description

The command class encapsulates the interactions between the various interfaces of the SDFormat Editor, providing undo/redo functionality when applicable.

Member Function Documentation

ChangesProgramStateIrreversibly()

virtual bool CommandI::ChangesProgramStateIrreversibly ( )

pure virtual

Indicates if this command is an irreversible state-changing command.

Returns

True if this command changes the state of the program irreversibly

Implemented in AddElementCommand, CloseModelViewerCommand, CreateFileCommand, DeleteElementCommand, GenericCommand, ModifyAttributeCommand< T >, ModifyElementCommand< T >, OpenFileCommand, OpenModelViewerCommand, RenderModelCommand, and SaveFileCommand.

Execute()

virtual bool CommandI::Execute ( )

pure virtual

Execution of the command. Must be implemented as applicable by the derived class.

Returns

True if the command has been executed

Implemented in SaveFileCommand, AddElementCommand, CloseModelViewerCommand, CreateFileCommand, DeleteElementCommand, GenericCommand, ModifyAttributeCommand< T >, ModifyElementCommand< T >, OpenFileCommand, OpenModelViewerCommand, and RenderModelCommand.

ExecuteRedo()

virtual bool CommandI::ExecuteRedo ( )

pure virtual

Execution of the redo command. Must be implemented as applicable by the derived class.

Returns

True if the command is redo-able and has been redone

Implemented in AddElementCommand, CloseModelViewerCommand, CreateFileCommand, DeleteElementCommand, GenericCommand, ModifyAttributeCommand< T >, ModifyElementCommand< T >, OpenFileCommand, OpenModelViewerCommand, RenderModelCommand, and SaveFileCommand.

ExecuteUndo()

virtual bool CommandI::ExecuteUndo ( )

pure virtual

Execution of the undo command. Must be implemented as applicable by the derived class.

Returns

True if the command undo-able and has been undone

Implemented in AddElementCommand, CloseModelViewerCommand, CreateFileCommand, DeleteElementCommand, GenericCommand, ModifyAttributeCommand< T >, ModifyElementCommand< T >, OpenFileCommand, OpenModelViewerCommand, RenderModelCommand, and SaveFileCommand.

IsRedoable()

virtual bool CommandI::IsRedoable ( )

pure virtual

Redo functionality of the command.

Returns

True if the command can be redone

Implemented in AddElementCommand, CloseModelViewerCommand, CreateFileCommand, DeleteElementCommand, GenericCommand, ModifyAttributeCommand< T >, ModifyElementCommand< T >, OpenFileCommand, OpenModelViewerCommand, RenderModelCommand, and SaveFileCommand.

IsThreaded()

virtual bool CommandI::IsThreaded ( bool &  prevent_user_input )

pure virtual

Indicates if this command should be run in a thread.

Parameters

[out]

prevent_user_input

indicates if user input should be prevented if this happens to be a threaded command

Returns

True if this command should be run in a thread

Implemented in AddElementCommand, CloseModelViewerCommand, CreateFileCommand, DeleteElementCommand, GenericCommand, ModifyAttributeCommand< T >, ModifyElementCommand< T >, OpenFileCommand, OpenModelViewerCommand, RenderModelCommand, and SaveFileCommand.

IsUndoable()

virtual bool CommandI::IsUndoable ( )

pure virtual

Undo functionality of the command.

Returns

True if the command can be undone

Implemented in AddElementCommand, CloseModelViewerCommand, CreateFileCommand, DeleteElementCommand, GenericCommand, ModifyAttributeCommand< T >, ModifyElementCommand< T >, OpenFileCommand, OpenModelViewerCommand, RenderModelCommand, and SaveFileCommand.

---

The documentation for this class was generated from the following file:

• include/interfaces/command_interface.h
