AddElementCommand Class Reference

Add Element command implementation of CommandI. More...

#include <AddElementCommand.h>

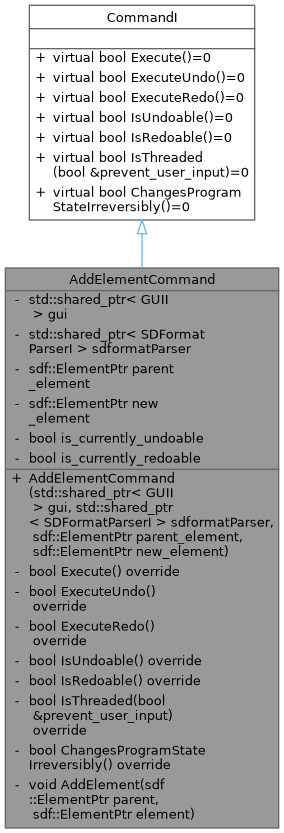

Inheritance diagram for AddElementCommand:

Collaboration diagram for AddElementCommand:

Public Member Functions
	AddElementCommand (std::shared_ptr< GUII > gui, std::shared_ptr< SDFormatParserI > sdformatParser, sdf::ElementPtr parent_element, sdf::ElementPtr new_element)
	Constructor for add element command objects.

Private Member Functions
bool	Execute () override
	Implementation of interface method.
bool	ExecuteUndo () override
	Implementation of interface method.
bool	ExecuteRedo () override
	Implementation of interface method.
bool	IsUndoable () override
	Implementation of interface method.
bool	IsRedoable () override
	Implementation of interface method.
bool	IsThreaded (bool &prevent_user_input) override
	Implementation of interface method.
bool	ChangesProgramStateIrreversibly () override
	Implementation of interface method.
void	AddElement (sdf::ElementPtr parent, sdf::ElementPtr element)
	Internal function to add element.

Private Attributes
std::shared_ptr< GUII >	gui
	Pointer to the gui interface.
std::shared_ptr< SDFormatParserI >	sdformatParser
	Pointer to the sdformat parser interface.
sdf::ElementPtr	parent_element
	Pointer to the parent of the element that may be added.
sdf::ElementPtr	new_element
	Pointer to the added element.
bool	is_currently_undoable = false
	Store if the command is currently undo-able.
bool	is_currently_redoable = false
	Store if the command is currently redo-able.

Detailed Description

Add Element command implementation of CommandI.

Constructor & Destructor Documentation

AddElementCommand()

AddElementCommand::AddElementCommand	(	std::shared_ptr< GUII >	gui,
		std::shared_ptr< SDFormatParserI >	sdformatParser,
		sdf::ElementPtr	parent_element,
		sdf::ElementPtr	new_element
	)

Constructor for add element command objects.

Parameters

[in]	gui	Pointer to the GUII object
[in]	sdformatParser	Pointer to the SDFormatParserI object
[in]	parent_element	Pointer to the parent of the element that may be added
[in]	new_element	Pointer to the element that is to be added

Member Function Documentation

ChangesProgramStateIrreversibly()

bool AddElementCommand::ChangesProgramStateIrreversibly ( )

overrideprivatevirtual

Implementation of interface method.

Returns

Always false

Implements CommandI.

Execute()

bool AddElementCommand::Execute ( )

overrideprivatevirtual

Implementation of interface method.

Returns

True if a new element is added to the specified parent

Implements CommandI.

ExecuteRedo()

bool AddElementCommand::ExecuteRedo ( )

overrideprivatevirtual

Implementation of interface method.

Returns

Returns true if the added element was restored to its parent again

Implements CommandI.

ExecuteUndo()

bool AddElementCommand::ExecuteUndo ( )

overrideprivatevirtual

Implementation of interface method.

Returns

Returns true if the added element was removed from its parent

Implements CommandI.

IsRedoable()

bool AddElementCommand::IsRedoable ( )

overrideprivatevirtual

Implementation of interface method.

Returns

Returns true if the command can be redone

Implements CommandI.

IsThreaded()

bool AddElementCommand::IsThreaded ( bool &  prevent_user_input )

overrideprivatevirtual

Implementation of interface method.

Parameters

[out]

prevent_user_input

indicates if user input should be prevented if this happens to be a threaded command

Returns

Always false

Implements CommandI.

IsUndoable()

bool AddElementCommand::IsUndoable ( )

overrideprivatevirtual

Implementation of interface method.

Returns

Returns true if the command can be undone

Implements CommandI.

---

The documentation for this class was generated from the following files:

• include/commands/AddElementCommand.h
• src/commands/AddElementCommand.cpp
