Interface for the SDFormat Editor's Parser. More...

#include <sdformat_parser_interface.h>

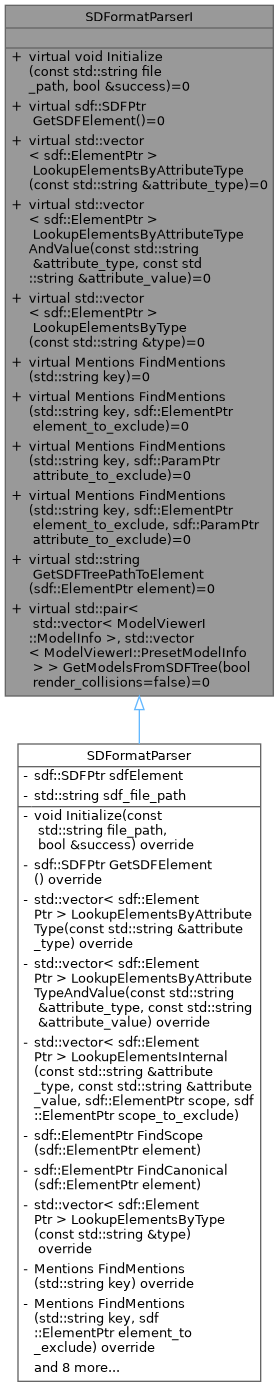

Inheritance diagram for SDFormatParserI:

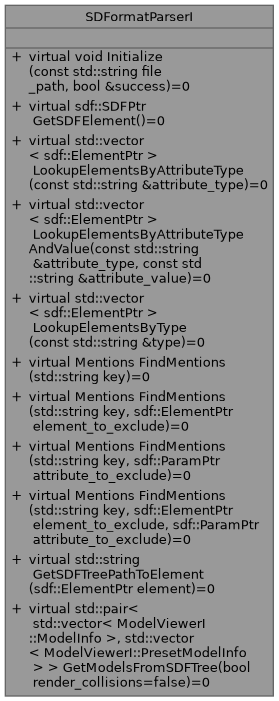

Collaboration diagram for SDFormatParserI:

Classes
struct	Mentions
	Struct to define a "mentions" object type. More...

Public Member Functions
virtual void	Initialize (const std::string file_path, bool &success)=0
	Initialization of the Parser. Will re-initalize the parser if initalized already.

virtual sdf::SDFPtr	GetSDFElement ()=0
	Returns the main sdfElement associated this this SDFormatParser instance.

virtual std::vector< sdf::ElementPtr >	LookupElementsByAttributeType (const std::string &attribute_type)=0
	Provides a list of elements which have an attribute of the given attribute type.

virtual std::vector< sdf::ElementPtr >	LookupElementsByAttributeTypeAndValue (const std::string &attribute_type, const std::string &attribute_value)=0
	Provides a list of elements which have an attribute of the given attribute type and the given attribute value.

virtual std::vector< sdf::ElementPtr >	LookupElementsByType (const std::string &type)=0
	Provides a list of elements which are of a given type.

virtual Mentions	FindMentions (std::string key)=0
	Finds the elements and attributes which mention a given key.

virtual Mentions	FindMentions (std::string key, sdf::ElementPtr element_to_exclude)=0
	Finds the elements and attributes which mention a given key.

virtual Mentions	FindMentions (std::string key, sdf::ParamPtr attribute_to_exclude)=0
	Finds the elements and attributes which mention a given key.

virtual Mentions	FindMentions (std::string key, sdf::ElementPtr element_to_exclude, sdf::ParamPtr attribute_to_exclude)=0
	Finds the elements and attributes which mention a given key.

virtual std::string	GetSDFTreePathToElement (sdf::ElementPtr element)=0
	Get the tree path to a given element.

virtual std::pair< std::vector< ModelViewerI::ModelInfo >, std::vector< ModelViewerI::PresetModelInfo > >	GetModelsFromSDFTree (bool render_collisions=false)=0
	Gets information about all models in the sdf tree in a format that can be interperted by the model viewer.

Detailed Description

Interface for the SDFormat Editor's Parser.

Member Function Documentation

◆ FindMentions() [1/4]

virtual Mentions SDFormatParserI::FindMentions ( std::string key )

pure virtual

Finds the elements and attributes which mention a given key.

Parameters

[in] key the string to search for

Returns: The elements and attributes that mention the given key

Implemented in SDFormatParser.

◆ FindMentions() [2/4]

virtual Mentions SDFormatParserI::FindMentions	(	std::string	key,
		sdf::ElementPtr	element_to_exclude
	)

pure virtual

Finds the elements and attributes which mention a given key.

Parameters

[in]	key	the string to search for
[in]	element_to_exclude	the element to exclude in the search

Returns: The elements and attributes that mention the given key

Implemented in SDFormatParser.

◆ FindMentions() [3/4]

virtual Mentions SDFormatParserI::FindMentions	(	std::string	key,
		sdf::ElementPtr	element_to_exclude,
		sdf::ParamPtr	attribute_to_exclude
	)

pure virtual

Finds the elements and attributes which mention a given key.

Parameters

[in]	key	the string to search for
[in]	element_to_exclude	the element to exclude in the search
[in]	attribute_to_exclude	the attribute to exclude in the search

Returns: The elements and attributes that mention the given key

Implemented in SDFormatParser.

◆ FindMentions() [4/4]

virtual Mentions SDFormatParserI::FindMentions	(	std::string	key,
		sdf::ParamPtr	attribute_to_exclude
	)

pure virtual

Finds the elements and attributes which mention a given key.

Parameters

[in]	key	the string to search for
[in]	attribute_to_exclude	the attribute to exclude in the search

Returns: The elements and attributes that mention the given key

Implemented in SDFormatParser.

◆ GetModelsFromSDFTree()

virtual std::pair< std::vector< ModelViewerI::ModelInfo >, std::vector< ModelViewerI::PresetModelInfo > > SDFormatParserI::GetModelsFromSDFTree ( bool render_collisions = false )

pure virtual

Gets information about all models in the sdf tree in a format that can be interperted by the model viewer.

Parameters

[in] render_collisions indicates if collision meshes and shapes are included as well

Returns: A pair of vectors condaining structs of the model viewer interfaces's ModelInfo and Preset Model Info, which in turn contain the necessary information to render models

Implemented in SDFormatParser.

◆ GetSDFElement()

virtual sdf::SDFPtr SDFormatParserI::GetSDFElement ( )

pure virtual

Returns the main sdfElement associated this this SDFormatParser instance.

Returns: the main sdfElement associated this this SDFormatParser instance

Implemented in SDFormatParser.

◆ GetSDFTreePathToElement()

virtual std::string SDFormatParserI::GetSDFTreePathToElement ( sdf::ElementPtr element )

pure virtual

Get the tree path to a given element.

Parameters

[in] element element that we want a tree path for

Returns: Tree path as a string

Implemented in SDFormatParser.

◆ Initialize()

virtual void SDFormatParserI::Initialize	(	const std::string	file_path,
		bool &	success
	)

pure virtual

Initialization of the Parser. Will re-initalize the parser if initalized already.

Parameters

[in]	file_path	The relative or absolute filepath to the SDF model. If relative, a relative_to path must be specified.
[out]	success	True if SDFParser initalization is successful

Implemented in SDFormatParser.

◆ LookupElementsByAttributeType()

virtual std::vector< sdf::ElementPtr > SDFormatParserI::LookupElementsByAttributeType ( const std::string & attribute_type )

pure virtual

Provides a list of elements which have an attribute of the given attribute type.

Parameters

[in] attribute_type The attribute type to use for lookup

Returns: A list of elements with a given attribute type

Implemented in SDFormatParser.

◆ LookupElementsByAttributeTypeAndValue()

virtual std::vector< sdf::ElementPtr > SDFormatParserI::LookupElementsByAttributeTypeAndValue	(	const std::string &	attribute_type,
		const std::string &	attribute_value
	)

pure virtual

Provides a list of elements which have an attribute of the given attribute type and the given attribute value.

Parameters

[in]	attribute_type	The attribute type to use for lookup
[in]	attribute_value	The attribute type to use for lookup

Returns: A list of elements with the given attribute type and the given attribute value

Implemented in SDFormatParser.

◆ LookupElementsByType()

virtual std::vector< sdf::ElementPtr > SDFormatParserI::LookupElementsByType ( const std::string & type )

pure virtual

Provides a list of elements which are of a given type.

Parameters

[in] type The type by which to lookup elements

Returns: A list of elements with a given attribute type

Implemented in SDFormatParser.

The documentation for this class was generated from the following file:

include/interfaces/sdformat_parser_interface.h
