Implementation of CommandFactoryI. More...

#include <command_factory.h>

Inheritance diagram for CommandFactory:

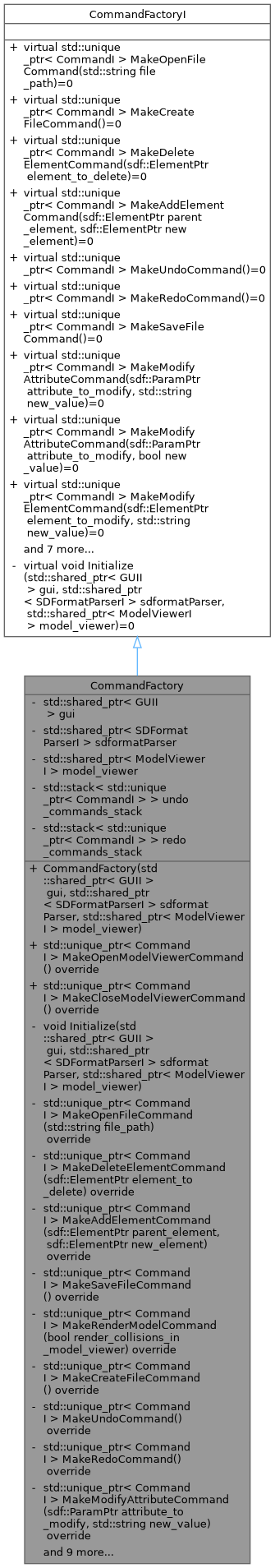

Collaboration diagram for CommandFactory:

Public Member Functions
	CommandFactory (std::shared_ptr< GUII > gui, std::shared_ptr< SDFormatParserI > sdformatParser, std::shared_ptr< ModelViewerI > model_viewer)
	Constructor that wraps the Initialize method.

std::unique_ptr< CommandI >	MakeOpenModelViewerCommand () override
	Create a open model viewer model command.

std::unique_ptr< CommandI >	MakeCloseModelViewerCommand () override
	Create a close model viewer model command.

Private Member Functions
void	Initialize (std::shared_ptr< GUII > gui, std::shared_ptr< SDFormatParserI > sdformatParser, std::shared_ptr< ModelViewerI > model_viewer)
	Implementation of interface method, wrapped by constructor.

std::unique_ptr< CommandI >	MakeOpenFileCommand (std::string file_path) override
	Implementation of interface method.

std::unique_ptr< CommandI >	MakeDeleteElementCommand (sdf::ElementPtr element_to_delete) override
	Implementation of interface method.

std::unique_ptr< CommandI >	MakeAddElementCommand (sdf::ElementPtr parent_element, sdf::ElementPtr new_element) override
	Create an add element command.

std::unique_ptr< CommandI >	MakeSaveFileCommand () override
	Implementation of interface method.

std::unique_ptr< CommandI >	MakeRenderModelCommand (bool render_collisions_in_model_viewer) override
	Implementation of interface method.

std::unique_ptr< CommandI >	MakeCreateFileCommand () override
	Implementation of interface method.

std::unique_ptr< CommandI >	MakeUndoCommand () override
	Implementation of interface method.

std::unique_ptr< CommandI >	MakeRedoCommand () override
	Implementation of interface method.

std::unique_ptr< CommandI >	MakeModifyAttributeCommand (sdf::ParamPtr attribute_to_modify, std::string new_value) override
	Implementation of interface method.

std::unique_ptr< CommandI >	MakeModifyAttributeCommand (sdf::ParamPtr attribute_to_modify, bool new_value) override
	Implementation of interface method.

std::unique_ptr< CommandI >	MakeModifyElementCommand (sdf::ElementPtr element_to_modify, std::string new_value) override
	Implementation of interface method.

std::unique_ptr< CommandI >	MakeModifyElementCommand (sdf::ElementPtr element_to_modify, bool new_value) override
	Implementation of interface method.

void	ClearStack (std::stack< std::unique_ptr< CommandI > > &stack)
	Clears the undo stack.

void	ClearUndoRedoStacks () override
	Implementation of interface method.

void	PushToUndoCommandsStack (std::unique_ptr< CommandI > command, const bool new_change=true) override
	Pushes to the undo commands stack.

void	PushToRedoCommandsStack (std::unique_ptr< CommandI > command) override
	Pushes to the redo commands stack.

void	PopFromUndoCommandsStack ()
	Pops from the undo commands stack and executes the popped command.

void	PopFromRedoCommandsStack ()
	Pops from the redo commands stack and executes the popped command.

Private Attributes
std::shared_ptr< GUII >	gui
	Pointer to the GUI obejct.

std::shared_ptr< SDFormatParserI >	sdformatParser
	Pointer to the sdformat parser object.

std::shared_ptr< ModelViewerI >	model_viewer
	Pointer to the model viewer object.

std::stack< std::unique_ptr< CommandI > >	undo_commands_stack
	Stack for undo functionality.

std::stack< std::unique_ptr< CommandI > >	redo_commands_stack
	Stack for redo functionality.

Detailed Description

Implementation of CommandFactoryI.

Constructor & Destructor Documentation

◆ CommandFactory()

CommandFactory::CommandFactory	(	std::shared_ptr< GUII >	gui,
		std::shared_ptr< SDFormatParserI >	sdformatParser,
		std::shared_ptr< ModelViewerI >	model_viewer
	)

Constructor that wraps the Initialize method.

Parameters

[in]	gui	A pointer to the GUI object
[in]	sdformat_parser	A pointer to the sdformat parser object
[in]	model_viewer	A pointer to the model viewer object

Member Function Documentation

◆ ClearUndoRedoStacks()

void CommandFactory::ClearUndoRedoStacks ( )

overrideprivatevirtual

Implementation of interface method.

Implements CommandFactoryI.

◆ Initialize()

void CommandFactory::Initialize	(	std::shared_ptr< GUII >	gui,
		std::shared_ptr< SDFormatParserI >	sdformatParser,
		std::shared_ptr< ModelViewerI >	model_viewer
	)

privatevirtual

Implementation of interface method, wrapped by constructor.

Parameters

[in]	gui	A pointer to the GUI object
[in]	sdformat_parser	A pointer to the sdformat parser object
[in]	model_viewer	A pointer to the model viewer object

Implements CommandFactoryI.

◆ MakeAddElementCommand()

std::unique_ptr< CommandI > CommandFactory::MakeAddElementCommand	(	sdf::ElementPtr	parent_element,
		sdf::ElementPtr	new_element
	)

overrideprivatevirtual

Create an add element command.

Parameters

[in]	parent_element	The parent of the new SDF element
[in]	new_element	The new SDF element

Returns: Unique pointer to a command interface

Implements CommandFactoryI.

◆ MakeCloseModelViewerCommand()

std::unique_ptr< CommandI > CommandFactory::MakeCloseModelViewerCommand ( )

overridevirtual

Create a close model viewer model command.

Returns: Unique pointer to a command interface

Implements CommandFactoryI.

◆ MakeCreateFileCommand()

std::unique_ptr< CommandI > CommandFactory::MakeCreateFileCommand ( )

overrideprivatevirtual

Implementation of interface method.

Returns: Unique pointer to a command interface

Implements CommandFactoryI.

◆ MakeDeleteElementCommand()

std::unique_ptr< CommandI > CommandFactory::MakeDeleteElementCommand ( sdf::ElementPtr element_to_delete )

overrideprivatevirtual

Implementation of interface method.

Parameters

[in] element_to_delete The SDF element to delete

Returns: Unique pointer to a command interface

Implements CommandFactoryI.

◆ MakeModifyAttributeCommand() [1/2]

std::unique_ptr< CommandI > CommandFactory::MakeModifyAttributeCommand	(	sdf::ParamPtr	attribute_to_modify,
		bool	new_value
	)

overrideprivatevirtual

Implementation of interface method.

Parameters

[in]	attribute_to_modify	A pointer to the attribute that will be modified
[in]	new_value	The new value as a bool

Returns: Unique pointer to a command interface

Implements CommandFactoryI.

◆ MakeModifyAttributeCommand() [2/2]

std::unique_ptr< CommandI > CommandFactory::MakeModifyAttributeCommand	(	sdf::ParamPtr	attribute_to_modify,
		std::string	new_value
	)

overrideprivatevirtual

Implementation of interface method.

Parameters

[in]	attribute_to_modify	A pointer to the attribute that will be modified
[in]	new_value	The new value as a string

Returns: Unique pointer to a command interface

Implements CommandFactoryI.

◆ MakeModifyElementCommand() [1/2]

std::unique_ptr< CommandI > CommandFactory::MakeModifyElementCommand	(	sdf::ElementPtr	element_to_modify,
		bool	new_value
	)

overrideprivatevirtual

Implementation of interface method.

Parameters

[in]	element_to_modify	A pointer to the element that will be modified
[in]	new_value	The new value as a bool

Returns: Unique pointer to a command interface

Implements CommandFactoryI.

◆ MakeModifyElementCommand() [2/2]

std::unique_ptr< CommandI > CommandFactory::MakeModifyElementCommand	(	sdf::ElementPtr	element_to_modify,
		std::string	new_value
	)

overrideprivatevirtual

Implementation of interface method.

Parameters

[in]	element_to_modify	A pointer to the element that will be modified
[in]	new_value	The new value as a string

Returns: Unique pointer to a command interface

Implements CommandFactoryI.

◆ MakeOpenFileCommand()

std::unique_ptr< CommandI > CommandFactory::MakeOpenFileCommand ( std::string file_path )

overrideprivatevirtual

Implementation of interface method.

Parameters

[in] file_path Filepath of the model

Returns: Unique pointer to a command interface

Implements CommandFactoryI.

◆ MakeOpenModelViewerCommand()

std::unique_ptr< CommandI > CommandFactory::MakeOpenModelViewerCommand ( )

overridevirtual

Create a open model viewer model command.

Returns: Unique pointer to a command interface

Implements CommandFactoryI.

◆ MakeRedoCommand()

std::unique_ptr< CommandI > CommandFactory::MakeRedoCommand ( )

overrideprivatevirtual

Implementation of interface method.

Returns: Unique pointer to a command interface

Implements CommandFactoryI.

◆ MakeRenderModelCommand()

std::unique_ptr< CommandI > CommandFactory::MakeRenderModelCommand ( bool render_collisions_in_model_viewer )

overrideprivatevirtual

Implementation of interface method.

Parameters

[in] render_collisions_in_model_viewer indicates if collision boxes should be rendered in the model viewer

Returns: Unique pointer to a command interface

Implements CommandFactoryI.

◆ MakeSaveFileCommand()

std::unique_ptr< CommandI > CommandFactory::MakeSaveFileCommand ( )

overrideprivatevirtual

Implementation of interface method.

Returns: Unique pointer to a command interface

Implements CommandFactoryI.

◆ MakeUndoCommand()

std::unique_ptr< CommandI > CommandFactory::MakeUndoCommand ( )

overrideprivatevirtual

Implementation of interface method.

Returns: Unique pointer to a command interface

Implements CommandFactoryI.

◆ PushToRedoCommandsStack()

void CommandFactory::PushToRedoCommandsStack ( std::unique_ptr< CommandI > command )

overrideprivatevirtual

Pushes to the redo commands stack.

Parameters

[in] command commandI object to push

Implements CommandFactoryI.

◆ PushToUndoCommandsStack()

void CommandFactory::PushToUndoCommandsStack	(	std::unique_ptr< CommandI >	command,
		const bool	new_change = `true`
	)

overrideprivatevirtual

Pushes to the undo commands stack.

Parameters

[in]	command	commandI object to push
[in]	new_change	indicates if we are pushing a new change, and thus should clear the redo stack

Implements CommandFactoryI.

The documentation for this class was generated from the following files:

include/command_factory.h
src/command_factory.cpp
