Implementation of GUII. More...

#include <gui.h>

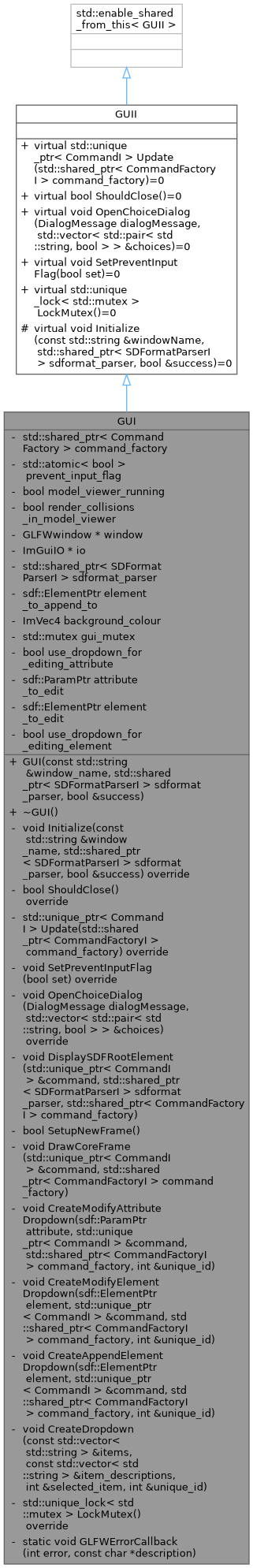

Inheritance diagram for GUI:

Collaboration diagram for GUI:

Public Member Functions
	GUI (const std::string &window_name, std::shared_ptr< SDFormatParserI > sdformat_parser, bool &success)
	Constructor that wraps the Initialize method.

	~GUI ()
	Destructor.

Private Member Functions
void	Initialize (const std::string &window_name, std::shared_ptr< SDFormatParserI > sdformat_parser, bool &success) override
	Implementation of interface method, wrapped by constructor.

bool	ShouldClose () override
	Implementation of interface method.

std::unique_ptr< CommandI >	Update (std::shared_ptr< CommandFactoryI > command_factory) override
	Implementation of interface method.

void	SetPreventInputFlag (bool set) override
	Implementation of flag setting method.

void	OpenChoiceDialog (DialogMessage dialogMessage, std::vector< std::pair< std::string, bool > > &choices) override
	Implementation of interface method.

void	DisplaySDFRootElement (std::unique_ptr< CommandI > &command, std::shared_ptr< SDFormatParserI > sdformat_parser, std::shared_ptr< CommandFactoryI > command_factory)
	Function to display the SDF root element in the GUI in a tree format.

bool	SetupNewFrame ()
	Sets up a new ImGUI frame.

void	DrawCoreFrame (std::unique_ptr< CommandI > &command, std::shared_ptr< CommandFactoryI > command_factory)
	Draw the core part of the ImGUI frame.

void	CreateModifyAttributeDropdown (sdf::ParamPtr attribute, std::unique_ptr< CommandI > &command, std::shared_ptr< CommandFactoryI > command_factory, int &unique_id)
	Create a dropdown list.

void	CreateModifyElementDropdown (sdf::ElementPtr element, std::unique_ptr< CommandI > &command, std::shared_ptr< CommandFactoryI > command_factory, int &unique_id)
	Create a dropdown list.

void	CreateAppendElementDropdown (sdf::ElementPtr element, std::unique_ptr< CommandI > &command, std::shared_ptr< CommandFactoryI > command_factory, int &unique_id)
	Create a dropdown list for an element.

void	CreateDropdown (const std::vector< std::string > &items, const std::vector< std::string > &item_descriptions, int &selected_item, int &unique_id)
	Create a dropdown list.

std::unique_lock< std::mutex >	LockMutex () override
	Implementation of lock method.

Static Private Member Functions
static void	GLFWErrorCallback (int error, const char *description)
	Function for handling GLFW Error (required to be static by GLFW)

Private Attributes
std::shared_ptr< CommandFactory >	command_factory

std::atomic< bool >	prevent_input_flag = false
	Flag which can be set to prevent the GUI from taking user input.

bool	model_viewer_running = false
	Flag to indicate if the model viewer is currently running.

bool	render_collisions_in_model_viewer = false
	Flag to indicate if collisions should be loaded in the model viewer.

GLFWwindow *	window = nullptr
	Pointer to the GLFW window object, used to manage for rendering and handling window events.

ImGuiIO *	io = nullptr
	Reference to the ImGuiIO structure, which handles input/output operations for ImGui.

std::shared_ptr< SDFormatParserI >	sdformat_parser
	Pointer to the sdformat_parser object.

sdf::ElementPtr	element_to_append_to
	An element for which we want to show the "append_to" dropdown.

ImVec4	background_colour
	The background color used in the GUI.

std::mutex	gui_mutex
	Mutex to protect shared resources.

bool	use_dropdown_for_editing_attribute = false
	Indicates if a dropdown is used for editing attributes.

sdf::ParamPtr	attribute_to_edit
	Holds a reference to the attribute the user is currently editing.

sdf::ElementPtr	element_to_edit
	Holds a reference to the element the user is currently editing.

bool	use_dropdown_for_editing_element = false
	Indicates if a dropdown is used for editing attributes.

Additional Inherited Members

Detailed Description

Implementation of GUII.

Constructor & Destructor Documentation

◆ GUI()

GUI::GUI	(	const std::string &	window_name,
		std::shared_ptr< SDFormatParserI >	sdformat_parser,
		bool &	success
	)

Constructor that wraps the Initialize method.

Parameters

[in]	window_name	The name to be given to the SDFormatEditor Window
[in]	sdformat_parser	A pointer to the sdformat parser object
[out]	success	true if window initalization is successful

Member Function Documentation

◆ CreateAppendElementDropdown()

void GUI::CreateAppendElementDropdown	(	sdf::ElementPtr	element,
		std::unique_ptr< CommandI > &	command,
		std::shared_ptr< CommandFactoryI >	command_factory,
		int &	unique_id
	)

private

Create a dropdown list for an element.

Parameters

[in]	element	A pointer to the element for which to create a dropdown
[out]	command	a pointer to the command resulting from the user's action during this frame
[in]	command_factory	used for creating command objects
[out]	unique_id	a unique id for the ImGUI dropdowm

◆ CreateDropdown()

void GUI::CreateDropdown	(	const std::vector< std::string > &	items,
		const std::vector< std::string > &	item_descriptions,
		int &	selected_item,
		int &	unique_id
	)

private

Create a dropdown list.

Parameters

[in]	items	A vector of strings to include in the dropdown
[in]	item_descriptions	A vector of strings for the descriptions of each item
[out]	selected_item	an integer representing the selected item
[out]	unique_id	a unique id for the ImGUI dropdowm

◆ CreateModifyAttributeDropdown()

void GUI::CreateModifyAttributeDropdown	(	sdf::ParamPtr	attribute,
		std::unique_ptr< CommandI > &	command,
		std::shared_ptr< CommandFactoryI >	command_factory,
		int &	unique_id
	)

private

Create a dropdown list.

Parameters

[in]	attribute	A pointer to the attribute for which to create a dropdown
[out]	command	a pointer to the command resulting from the user's action during this frame
[in]	command_factory	used for creating command objects
[out]	unique_id	a unique id for the ImGUI dropdowm

◆ CreateModifyElementDropdown()

void GUI::CreateModifyElementDropdown	(	sdf::ElementPtr	element,
		std::unique_ptr< CommandI > &	command,
		std::shared_ptr< CommandFactoryI >	command_factory,
		int &	unique_id
	)

private

Create a dropdown list.

Parameters

[in]	element	A pointer to the element for which to create a dropdown
[out]	command	a pointer to the command resulting from the user's action during this frame
[in]	command_factory	used for creating command objects
[out]	unique_id	a unique id for the ImGUI dropdowm

◆ DisplaySDFRootElement()

void GUI::DisplaySDFRootElement	(	std::unique_ptr< CommandI > &	command,
		std::shared_ptr< SDFormatParserI >	sdformat_parser,
		std::shared_ptr< CommandFactoryI >	command_factory
	)

private

Function to display the SDF root element in the GUI in a tree format.

Parameters

[out]	command	a pointer to the command resulting from the user's action during this frame
[in]	sdformat_parser	an SDFormatParserI instance containing an sdf element
[in]	command_factory	used for creating command objects

◆ DrawCoreFrame()

void GUI::DrawCoreFrame	(	std::unique_ptr< CommandI > &	command,
		std::shared_ptr< CommandFactoryI >	command_factory
	)

private

Draw the core part of the ImGUI frame.

Parameters

[out]	command	a pointer to the command resulting from the user's action during this frame
[in]	command_factory	used for creating command objects

◆ GLFWErrorCallback()

void GUI::GLFWErrorCallback	(	int	error,
		const char *	description
	)

staticprivate

Function for handling GLFW Error (required to be static by GLFW)

Parameters

[in]	error	Error code from GLFW
[in]	description	Description of the error from GLFW

◆ Initialize()

void GUI::Initialize	(	const std::string &	window_name,
		std::shared_ptr< SDFormatParserI >	sdformat_parser,
		bool &	success
	)

overrideprivatevirtual

Implementation of interface method, wrapped by constructor.

Parameters

[in]	window_name	The name to be given to the SDFormatEditor Window
[in]	sdformat_parser	A pointer to the sdformat parser object
[out]	success	true if window initalization is successful

Implements GUII.

◆ LockMutex()

std::unique_lock< std::mutex > GUI::LockMutex ( )

overrideprivatevirtual

Implementation of lock method.

Implements GUII.

◆ OpenChoiceDialog()

void GUI::OpenChoiceDialog	(	DialogMessage	dialogMessage,
		std::vector< std::pair< std::string, bool > > &	choices
	)

overrideprivatevirtual

Implementation of interface method.

Parameters

[in]	dialogMessage	struct containing the strings to display
[out]	choices	a vector of string,bools pairs where one bool will be set true, corresponding to the user's choice

Implements GUII.

◆ SetPreventInputFlag()

void GUI::SetPreventInputFlag ( bool set )

overrideprivatevirtual

Implementation of flag setting method.

Parameters

[in] set value to set the flag

Implements GUII.

◆ SetupNewFrame()

bool GUI::SetupNewFrame ( )

private

Sets up a new ImGUI frame.

Returns: false if the window is minimized

◆ ShouldClose()

bool GUI::ShouldClose ( )

overrideprivatevirtual

Implementation of interface method.

Implements GUII.

◆ Update()

std::unique_ptr< CommandI > GUI::Update ( std::shared_ptr< CommandFactoryI > command_factory )

overrideprivatevirtual

Implementation of interface method.

Parameters

[in] command_factory used for creating command objects

Returns: The a pointer to the command resulting from the user's action during this frame

Implements GUII.

The documentation for this class was generated from the following files:

include/gui.h
src/gui.cpp
