Interface for the SDFormat Editor's Command Factory. More...

#include <command_factory_interface.h>

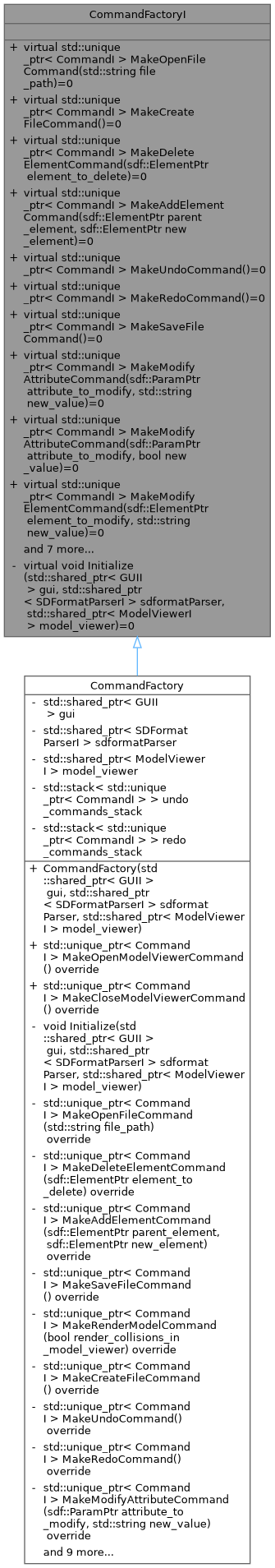

Inheritance diagram for CommandFactoryI:

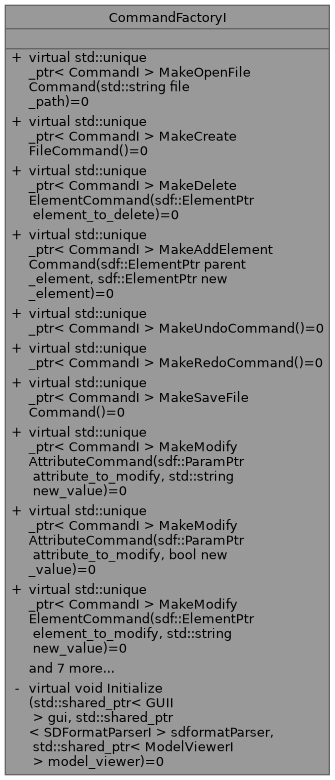

Collaboration diagram for CommandFactoryI:

Public Member Functions
virtual std::unique_ptr< CommandI >	MakeOpenFileCommand (std::string file_path)=0
	Create an open file command.

virtual std::unique_ptr< CommandI >	MakeCreateFileCommand ()=0
	Create a create file command.

virtual std::unique_ptr< CommandI >	MakeDeleteElementCommand (sdf::ElementPtr element_to_delete)=0
	Create a delete element command.

virtual std::unique_ptr< CommandI >	MakeAddElementCommand (sdf::ElementPtr parent_element, sdf::ElementPtr new_element)=0
	Create an add element command.

virtual std::unique_ptr< CommandI >	MakeUndoCommand ()=0
	Create an undo command.

virtual std::unique_ptr< CommandI >	MakeRedoCommand ()=0
	Create a redo command.

virtual std::unique_ptr< CommandI >	MakeSaveFileCommand ()=0
	Create a save file command.

virtual std::unique_ptr< CommandI >	MakeModifyAttributeCommand (sdf::ParamPtr attribute_to_modify, std::string new_value)=0
	create a modify attribute command

virtual std::unique_ptr< CommandI >	MakeModifyAttributeCommand (sdf::ParamPtr attribute_to_modify, bool new_value)=0
	create a modify attribute command

virtual std::unique_ptr< CommandI >	MakeModifyElementCommand (sdf::ElementPtr element_to_modify, std::string new_value)=0
	create a modify element command

virtual std::unique_ptr< CommandI >	MakeModifyElementCommand (sdf::ElementPtr element_to_modify, bool new_value)=0
	create a modify element command

virtual std::unique_ptr< CommandI >	MakeRenderModelCommand (bool render_collisions_in_model_viewer)=0
	Create a render model command.

virtual std::unique_ptr< CommandI >	MakeOpenModelViewerCommand ()=0
	Create a open model viewer model command.

virtual std::unique_ptr< CommandI >	MakeCloseModelViewerCommand ()=0
	Create a close model viewer model command.

virtual void	PushToUndoCommandsStack (std::unique_ptr< CommandI > command, const bool new_change=true)=0
	Pushes to the undo commands stack.

virtual void	PushToRedoCommandsStack (std::unique_ptr< CommandI > command)=0
	Pushes to the redo commands stack.

virtual void	ClearUndoRedoStacks ()=0
	Clears both the undo and redo stacks.

Private Member Functions
virtual void	Initialize (std::shared_ptr< GUII > gui, std::shared_ptr< SDFormatParserI > sdformatParser, std::shared_ptr< ModelViewerI > model_viewer)=0
	Initialization of the Command Factory. Should be wrapped in the constructor of the implementation.

Detailed Description

Interface for the SDFormat Editor's Command Factory.

Member Function Documentation

◆ ClearUndoRedoStacks()

virtual void CommandFactoryI::ClearUndoRedoStacks ( )

pure virtual

Clears both the undo and redo stacks.

Implemented in CommandFactory.

◆ Initialize()

virtual void CommandFactoryI::Initialize	(	std::shared_ptr< GUII >	gui,
		std::shared_ptr< SDFormatParserI >	sdformatParser,
		std::shared_ptr< ModelViewerI >	model_viewer
	)

privatepure virtual

Initialization of the Command Factory. Should be wrapped in the constructor of the implementation.

Parameters

[in]	gui	A pointer to the GUI object
[in]	sdformat_parser	A pointer to the sdformat parser object
[in]	model_viewer	A pointer to the model viewer object

Implemented in CommandFactory.

◆ MakeAddElementCommand()

virtual std::unique_ptr< CommandI > CommandFactoryI::MakeAddElementCommand	(	sdf::ElementPtr	parent_element,
		sdf::ElementPtr	new_element
	)

pure virtual

Create an add element command.

Parameters

[in]	parent_element	The parent of the new SDF element
[in]	new_element	The new SDF element

Returns: Unique pointer to a command interface

Implemented in CommandFactory.

◆ MakeCloseModelViewerCommand()

virtual std::unique_ptr< CommandI > CommandFactoryI::MakeCloseModelViewerCommand ( )

pure virtual

Create a close model viewer model command.

Returns: Unique pointer to a command interface

Implemented in CommandFactory.

◆ MakeCreateFileCommand()

virtual std::unique_ptr< CommandI > CommandFactoryI::MakeCreateFileCommand ( )

pure virtual

Create a create file command.

Returns: Unique pointer to a command interface

Implemented in CommandFactory.

◆ MakeDeleteElementCommand()

virtual std::unique_ptr< CommandI > CommandFactoryI::MakeDeleteElementCommand ( sdf::ElementPtr element_to_delete )

pure virtual

Create a delete element command.

Parameters

[in] element_to_delete The SDF element to delete

Returns: Unique pointer to a command interface

Implemented in CommandFactory.

◆ MakeModifyAttributeCommand() [1/2]

virtual std::unique_ptr< CommandI > CommandFactoryI::MakeModifyAttributeCommand	(	sdf::ParamPtr	attribute_to_modify,
		bool	new_value
	)

pure virtual

create a modify attribute command

Parameters

[in]	attribute_to_modify	Pointer to the attribute to modify
[in]	new_value	The boolean value that will be given to the element

Returns: a unique pointer to the commmand interface

Implemented in CommandFactory.

◆ MakeModifyAttributeCommand() [2/2]

virtual std::unique_ptr< CommandI > CommandFactoryI::MakeModifyAttributeCommand	(	sdf::ParamPtr	attribute_to_modify,
		std::string	new_value
	)

pure virtual

create a modify attribute command

Parameters

[in]	attribute_to_modify	Pointer to the attribute to modify
[in]	new_value	The string value that will be given to the element

Returns: a unique pointer to the commmand interface

Implemented in CommandFactory.

◆ MakeModifyElementCommand() [1/2]

virtual std::unique_ptr< CommandI > CommandFactoryI::MakeModifyElementCommand	(	sdf::ElementPtr	element_to_modify,
		bool	new_value
	)

pure virtual

create a modify element command

Returns: a unique pointer to the commmand interface

Parameters

[in]	element_to_modify	Pointer to the element to modify
[in]	new_value	The boolean value that will be given to the element

Implemented in CommandFactory.

◆ MakeModifyElementCommand() [2/2]

virtual std::unique_ptr< CommandI > CommandFactoryI::MakeModifyElementCommand	(	sdf::ElementPtr	element_to_modify,
		std::string	new_value
	)

pure virtual

create a modify element command

Returns: a unique pointer to the commmand interface

Parameters

[in]	element_to_modify	Pointer to the element to modify
[in]	new_value	The string value that will be given to the element

Implemented in CommandFactory.

◆ MakeOpenFileCommand()

virtual std::unique_ptr< CommandI > CommandFactoryI::MakeOpenFileCommand ( std::string file_path )

pure virtual

Create an open file command.

Parameters

[in] file_path Filepath of the model

Returns: Unique pointer to a command interface

Implemented in CommandFactory.

◆ MakeOpenModelViewerCommand()

virtual std::unique_ptr< CommandI > CommandFactoryI::MakeOpenModelViewerCommand ( )

pure virtual

Create a open model viewer model command.

Returns: Unique pointer to a command interface

Implemented in CommandFactory.

◆ MakeRedoCommand()

virtual std::unique_ptr< CommandI > CommandFactoryI::MakeRedoCommand ( )

pure virtual

Create a redo command.

Returns: Unique pointer to a command interface

Implemented in CommandFactory.

◆ MakeRenderModelCommand()

virtual std::unique_ptr< CommandI > CommandFactoryI::MakeRenderModelCommand ( bool render_collisions_in_model_viewer )

pure virtual

Create a render model command.

Parameters

[in] render_collisions_in_model_viewer indicates if collision boxes should be rendered in the model viewer

Returns: Unique pointer to a command interface

Implemented in CommandFactory.

◆ MakeSaveFileCommand()

virtual std::unique_ptr< CommandI > CommandFactoryI::MakeSaveFileCommand ( )

pure virtual

Create a save file command.

Returns: Unique pointer to a command interface

Implemented in CommandFactory.

◆ MakeUndoCommand()

virtual std::unique_ptr< CommandI > CommandFactoryI::MakeUndoCommand ( )

pure virtual

Create an undo command.

Returns: Unique pointer to a command interface

Implemented in CommandFactory.

◆ PushToRedoCommandsStack()

virtual void CommandFactoryI::PushToRedoCommandsStack ( std::unique_ptr< CommandI > command )

pure virtual

Pushes to the redo commands stack.

Parameters

[in] command commandI object to push

Implemented in CommandFactory.

◆ PushToUndoCommandsStack()

virtual void CommandFactoryI::PushToUndoCommandsStack	(	std::unique_ptr< CommandI >	command,
		const bool	new_change = `true`
	)

pure virtual

Pushes to the undo commands stack.

Parameters

[in]	command	commandI object to push
[in]	new_change	indicates if we are pushing a new change, and thus should clear the redo stack

Implemented in CommandFactory.

The documentation for this class was generated from the following file:

include/interfaces/command_factory_interface.h
